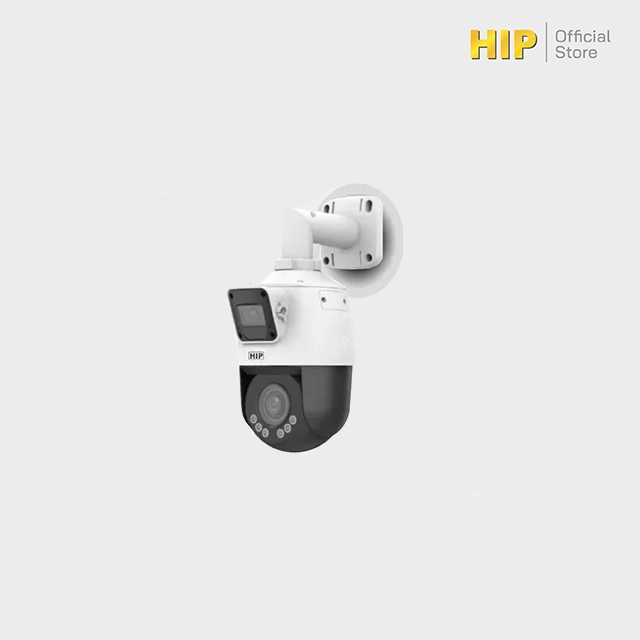

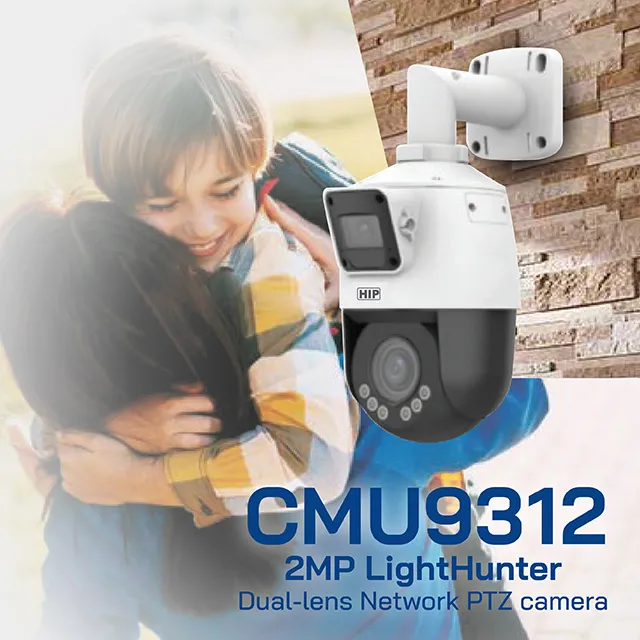

HIP 2MP LightHunter Dual-lens Network PTZ camera รุ่น CMU9312

รหัสสินค้า :

CMU9312

HIP 2MP LightHunter Dual-lens Network PTZ camera รุ่น CMU9312 เป็นระบบกล้อง 2 in 1 ตัวไว้หมุนตามคน อีก 1 ตัวอยู่กับที่ ความละเอียด 2 ล้านพิกเซล

  • Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
  • High quality image with 2MP,1/2.8"' CMOS sensor
  • 1920*1080@25fps in the mainstream
  • Ultra 265, H.265, H.264, MJPEG
  • 4X optical zoom of PTZ channel allows for closer viewing of subjects
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • PTZ channel can be linked by fixed channel' smart intrusion prevention to track the objects triggering the rule
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
  • Support ceiling mount and wall mount
  • IR & warm light illumination to deal with different scenes and achieve full-color illumination
  • DC12V or PoE+(IEEE 802.3at) power supply

HIP Logo PDF

หมวดหมู่สินค้า :

แชร์ข้อมูล :

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Model CMU9312 Detail
Camera Panorama
Sensor 1/2.8", 2MP, CMOS
Min. Illumination Colour: 0.002Lux (F1.6, AGC ON)
OLux with IR on
Color:0.002 lux (F1.6, AGC ON)
OLux  with IR/Warm light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual,
shutter time : 1s ~ 1/100000s
WDR 120dB DWDR

S/N

Lens >52dB 2.8~12mm@F1.6 , AFautomaticfocusing
and motorized zoom lens
Lenstype 2.8mm @F1.6 X4
Optical Zoom N/A
Iris Fixed aperture
Field of View (H) 102.4" 106.6" ~ 30.6
Field of View (V) 54.9" 56.5" ~ 17.4"
Field of View (D) 133.1" 138.6" ~ 37.6

DORI

DORI Distance Lens (mm)
2.8mm(Panorama)
2.8mm(Detail)
12mm(Detail)
Detect (m)
43.4(142.4ft)
43.4 (142.4ft)
162.9(534.6ft)
Observe (m)
17.4(57.1ft)
17.4(57.1ft)
65.2(213.8ft)
Recognize (m)
8.7 (28.5ft)
8.7 (28.5ft)
32.6(106.9ft)
Identify (m)
4.3(14.1ft)
4.3(14.1ft)
16.3(53.5ft)
