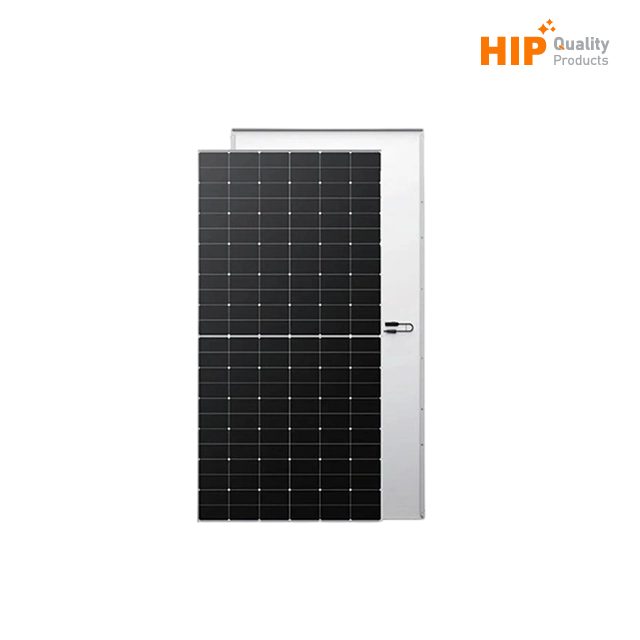

Longi Solar Mono LR4-72HBD-445M

รหัสสินค้า :

LR4-72HBD-445M

Longi Solar Mono LR4-72HBD-445M The LONGi module combines High Efficiency, Low LID Mono PERC cells with Half-cut Multi-Busbar Technology to improve performance and boost production. This module series has a max system voltage of 1500V and is Fire Rated as Class C (per UL790). 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading/p>

  • Suitable for ground power plants and distributed projects
  • Advanced module technology delivers superior module efficiency
  • Excellent outdoor power generation performance
  • High module quality ensures long-term reliability

HIP Logo PDF

หมวดหมู่สินค้า :

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Longi Solar Mono LR4-72HBD-445M Half-cut Cells (72 cell equivalent). Silver 35mm frame, white backsheet and MC4 compatible connectors w/ 55" (1400mm) cable.

The LONGi HPH Series combines High Efficiency, Low LID Mono PERC cells with Half-cut Muti Busbar Technology to improve performance and boost production. This module series has a max system voltage of 1500V and is Fire Rated as Class C (per UL790). 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading.

  • Positive power tolerance (0~ +5W) guaranteed
  • High module conversion efficiency (up to 20.5%)
  • Slower power degradation enabled by Low LID Mono PERC technology: first year < 2%, 0.55% year 2-25
  • Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
  • Reduced resistive loss with lower operating current
  • Higher energy yield with lower operating temperature
  • Reduced hot spot risk with optimized electrical design and lower operating current
ModelLR4-72HPH-445M
SeriesLR4-72HPH 425 - 455M
Hi-MO 4m
ManufacturerLONGi
Mechanical
TypeMonocrystalline
Dimensions82.44" x 40.71" x 1.38"
Weight51.8 lbs
FrameAnodized aluminum alloy frame
ConnectorJunction Box with Cable & MC4 Compatible Connectors
Electrical
Watts (STC)445 W
Max Power Voltage (VMPP)41.3 V
Max Power Current (IMPP)10.71 A
Open Circuit Voltage (VOC)49.3 V
Short Circuit Current (ISC)11.53 A
Max System Voltage (UL)1000 VDC
  • 12 year Warranty for Material and Processing
  • 25 years Warranty for Extra Linear Power Output
