กล้องวงจรปิด รุ่น AK/I3W/E/Y/2.8mm/V2.0 วามคมชัด 2MP พร้อมไมโครโฟนในตัว

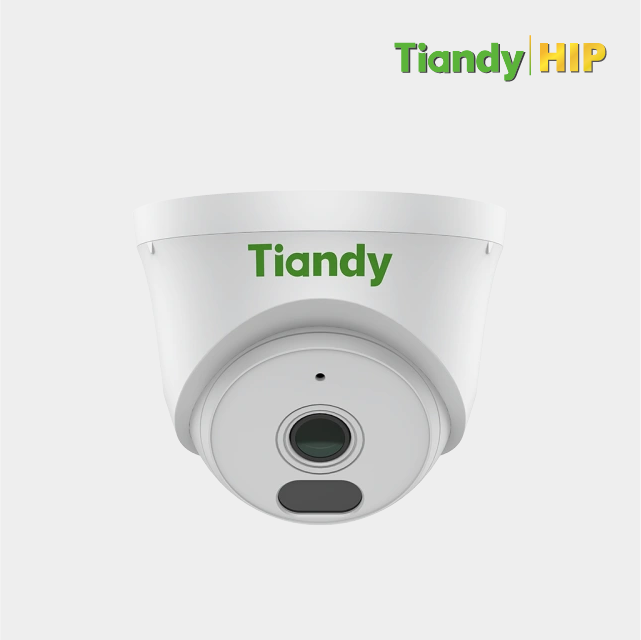

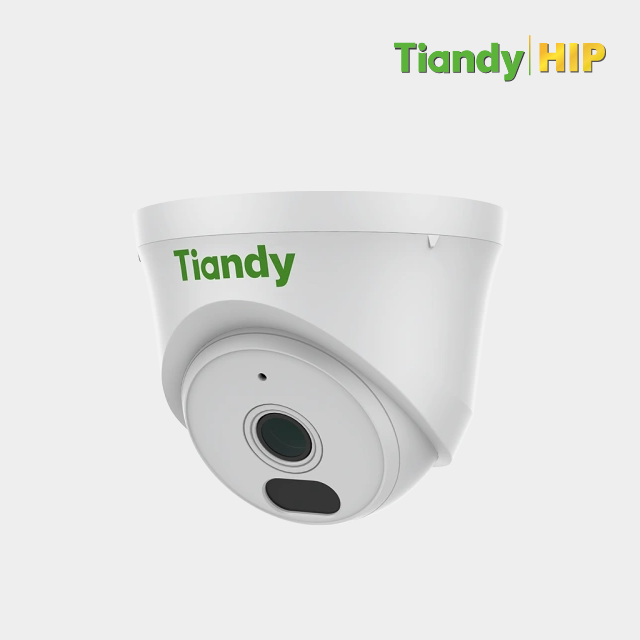

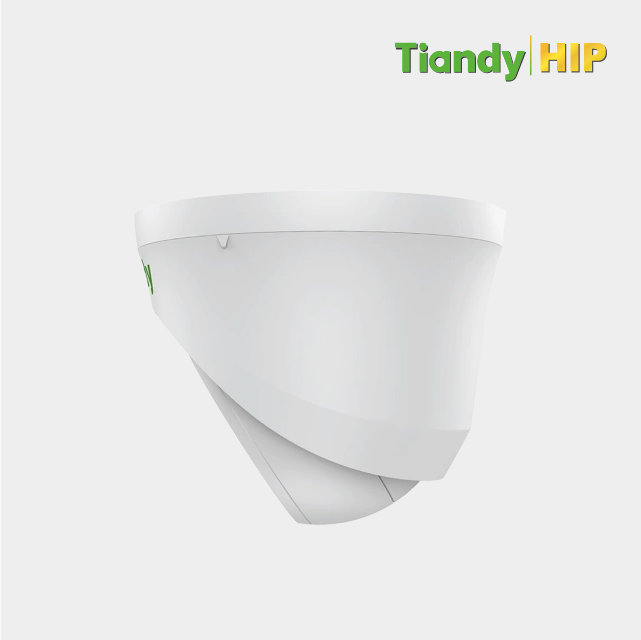

Tiandy CCTV Camera 2MP Color Maker Turret Camera TC-C320N Spec: AK/I3W/E/Y/2.8mm/V2.0 ความละเอียด 2 ล้านพิกเซล (2MP) ระบบการบันทึกภาพที่รองรับทั้งกลางวันและกลางคืน และฟังก์ชันเสริมต่าง ๆ ที่ออกแบบมาเพื่อการรักษาความปลอดภัยในทุกสภาพแวดล้อม ทั้งภายในและภายนอกอาคาร
อินฟราเรด LED 2 ดวง ที่สามารถมองเห็นในระยะไกลถึง 30 เมตร ในที่มืดสนิท และยังมี ไฟขาว (White LED) 2 ดวง ที่ให้แสงสว่างสูงสุดถึง 15 เมตร สำหรับพื้นที่ที่ต้องการความสว่างเพิ่มเติม โดยระบบ IR และไฟขาวจะทำงานอัตโนมัติตามระดับแสงโดยรอบ
ทำไมต้องเลือกกล้องวงจรปิด TC-C320N
- ความคมชัดระดับ Full HD 1080p พร้อมเสียงในตัว
- รองรับการใช้งานทั้งกลางวันและกลางคืน
- บันทึกภาพได้แม้ในที่มืดสนิท
- รองรับระบบ PoE ประหยัดพลังงาน ติดตั้งง่าย
- ทนทานต่อทุกสภาพอากาศด้วยมาตรฐาน IP67
- เหมาะสำหรับบ้าน สำนักงาน ร้านค้า หรือพื้นที่สาธารณะ
| Model |
TC-C320N Spec:AK/I3W/E/Y/2.8mm/V2.0 |
| Camera |
| Image Sensor |
1/3” CMOS |
| Min. Illumination |
Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time |
1s~1/100000s |
| Day&Night |
ICR cut filter with auto switch (ICR) |
| Smart IR |
Yes |
| WDR |
DWDR |
| S/N |
>47.8dB |
| Angle Adjustment |
0~360°(P), 0~80°(T), 0~360°(R) |
| Lens |
| Lens Type |
Fixed focal lens |
| Focal Length |
4mm |
| Lens Mount |
M12 |
| Aperture Range |
F1.6 |
| Aperture Type |
Fixed |
| Field of View |
78.3°(H), 44.1°(V), 89.3°(D) |
| DORI Distance |
Detect: ≈59.26m
Observe: ≈23.52m
Recognize: ≈11.85m
Identify: ≈5.93m
|
| Illuminator |
| IR LEDs |
2 |
| IR Distance |
Up to 30m |
| Wavelength |
850nm |
| White LEDs |
2 |
| WhiteLight Distance |
Up to 15m |
| Compression Standard |
| Video Compression |
S+265/H.265+/H.264+/H.264H/H.264 |
| Video BitRate |
32K~4Mbps |
| Audio Compression |
G.711A/G.711U |
| Audio Sampling Rate |
8kHz |
| Image |
| Max. Resolution |
2MP, 1920×1080 @30fps |
| Main Stream |
PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)
|
| Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
|
| BLC |
Yes |
| HLC |
Yes |
| AGC |
Yes |
| 3D DNR |
Yes |
| Image Settings |
| White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warm light/Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD |
Overlay of additional characters in 1 region, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*23/48*16 lattice |
| Privacy Mask |
4 black static areas |
| Defog |
Yes |
| Feature |
| General Alarm |
Motion Detection |
| Exceptions Alarm |
IP Address Conflict |
| Network |
| Protocols |
RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast |
| System Compatibility |
ONVIF(Profile S/T); SDK; CGI; Milestone |
| Remote Connection |
≤2 |
| Client |
Easy7; IMS |
| Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Interface |
| Communication Interface |
1 × RJ-45 (10/100 Base-T) |
| Built-in Mic |
1 × Built-in Mic |
| General |
| Web Client Language |
English |
| Operating Temperature |
-30°C~60°C (-22°F~140°F) |
| Operating Humidity |
<95%RH |
| Storage Temperature |
-30°C~60°C (-22°F~140°F) |
| Storage Humidity |
10%~95%RH (non-condensing) |
| Power Supply |
Poe (IEEE802.3af), Max. 3W |
| Protection |
Surge: 4000V; ESD: 6000V; IP67 |
| Boundary Dimensions |
140(L) × 60(W) × 60(H) mm |
| Package Dimensions |
155(L) × 75(W) × 85(H) mm |
| Gross Weight |
0.2kg |
