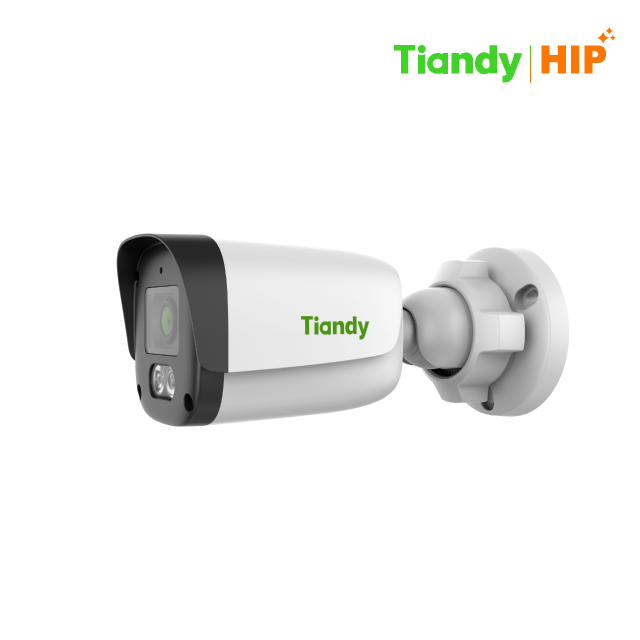

Tiandy CCTV Camera TC-C32QN I5W/E/Y/2.8mm/V4.2 กล้องวงจรปิด แบบ Bullet ในกลุ่ม SuperLite Series ที่ให้ภาพคมชัดระดับ 2MP พร้อมประสิทธิภาพการทำงานในที่แสงน้อยด้วยค่าแสง 0.02 Lux และระบบอินฟราเรดระยะไกลถึง 50 เมตร เสริมด้วยไฟ White Light และไมโครโฟนในตัว รองรับฟังก์ชันวิเคราะห์อัจฉริยะ Tripwire และ Perimeter เพื่อเพิ่มความแม่นยำในการเฝ้าระวัง ตัวกล้องแข็งแรงทนทานตามมาตรฐาน IP67 และรองรับการจ่ายไฟผ่าน PoE เหมาะสำหรับอาคารสำนักงาน โรงงาน และพื้นที่ภายนอกที่ต้องการระบบรักษาความปลอดภัยที่เชื่อถือได้ตลอด 24 ชั่วโมง
| Model |
TC-C32QN I5W/E/Y/2.8mm V4.2 |
| Camera |
| Image Sensor |
1/2.8" CMOS |
| Min. Illumination |
Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time |
1s ~ 1/100000s |
| Day & Night |
IR-cut filter with auto switch (ICR) |
| WDR |
DWDR |
| S/N Ratio |
>39dB |
| Angle Adjustment |
0~360°(P); 0~80°(T); 0~360°(R) |
| Lens |
| Lens Type |
Fixed focal lens |
| Focal Length |
2.8mm |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| Field of View |
104.9°(H); 56.5°(V); 119.2°(D) |
| DORI Distance |
Detect: 38.6m
Observe: 15.3m
Recognize: 7.7m
Identify: 3.8m
|
| Illuminator |
| IR LEDs |
2 |
| IR Distance |
50m |
| White LEDs |
2 |
| White Light Distance |
15m |
| Compression |
| Video Compression |
S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate |
32kbps ~ 6Mbps |
| Audio Compression |
G.711A / G.711U / ADPCM_D |
| Image |
| Main Stream |
PAL: 25fps (1920×1080, 1280×720, 640×480, 704×576)
NTSC: 30fps (1920×1080, 1280×720, 640×480, 704×480) |
| Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| BLC / HLC / AGC / 3D DNR |
Yes |
| White Balance |
Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament / Lock |
| ROI |
8 rectangular static areas |
| OSD |
Overlay up to 48 characters |
| Privacy Mask |
4 black static areas |
| Defog |
Yes |
| Feature |
| Alarm Trigger |
Motion Detection; Mask Alarm; IP Address Conflict |
| Linkage Method |
Trigger warmlight; Trigger capture |
| Video Analytics |
Tripwire; Perimeter |
| Network |
| Protocols |
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH; RTSP; FTP |
| System Compatibility |
P2P; ONVIF Profile S/T; CGI; Milestone |
| Remote Connection |
≤ 2 |
| Client |
Easy7 Smart Client |
| Mobile Client |
EasyLive Plus |
| Interface |
| Ethernet |
1× RJ-45, 10/100 Mbps |
| General |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
≤95% RH (no condensation) |
| Power Supply |
DC12V±25%, Max 6.5W; PoE IEEE802.3af, Max 7W |
| Protection |
Surge 4000V; IP67 |
| Dimensions |
164 × 73 × 73 mm |
| Gross Weight |
0.3 kg |
