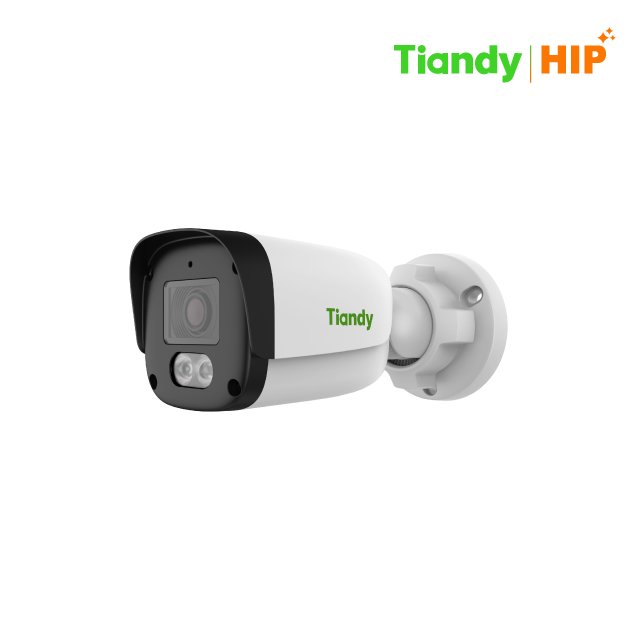

Tiandy CCTV Camera TC-C34QN I5W/E/Y/4mm/V4.2 กล้องวงจรปิดแบบ Fixed Color Maker Bullet ในกลุ่ม SuperLite Series ที่ให้ภาพคมชัดระดับ 4MP พร้อมประสิทธิภาพการทำงานในที่แสงน้อยได้อย่างยอดเยี่ยมด้วยค่าแสง 0.02 Lux และระบบ IR ระยะไกลถึง 50 เมตร เสริมด้วยไฟ White Light สำหรับการบันทึกภาพสีในเวลากลางคืน รองรับฟังก์ชันวิเคราะห์อัจฉริยะ Tripwire และ Perimeter พร้อมไมโครโฟนในตัว ตัวกล้องแข็งแรง ทนต่อสภาพอากาศด้วยมาตรฐาน IP67 และรองรับการจ่ายไฟผ่าน PoE เหมาะสำหรับโรงงาน อาคารสำนักงาน และพื้นที่ภายนอกอาคารที่ต้องการระบบรักษาความปลอดภัยที่เชื่อถือได้
| Model |
TC-C34QN I5W/E/Y/4mm V4.2 |
| Camera |
| Image Sensor |
1/2.9" CMOS |
| Min. Illumination |
Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time |
1s ~ 1/100000s |
| Day & Night |
IR-cut filter with auto switch (ICR) |
| WDR |
120dB |
| S/N Ratio |
>40dB |
| Angle Adjustment |
0~360° (Pan); 0~80° (Tilt); 0~360° (Rotate) |
| Lens |
| Lens Type |
Fixed focal lens |
| Focal Length |
4mm |
| Aperture |
F1.6 |
| Field of View |
81.6°(H); 43.1°(V); 94.2°(D) |
| DORI Distance |
Detect: 80.0m
Observe: 31.7m
Recognize: 16.0m
Identify: 8.0m
|
| Illuminator |
| IR LEDs |
2 |
| IR Distance |
Up to 50m |
| White LEDs |
2 |
| White Light Distance |
15m |
| Compression |
| Video Compression |
S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate |
32kbps ~ 6Mbps |
| Audio Compression |
G.711A / G.711U / ADPCM_D |
| Image |
| Max Resolution |
4MP, 2688×1520 @25fps |
| BLC / HLC / AGC / 3D DNR |
Yes |
| White Balance |
Auto / Manual / Daylight / Warmlight / Lock |
| ROI |
8 rectangular static areas |
| Privacy Mask |
4 black static areas |
| Defog |
Yes |
| Feature |
| Video Analytics |
Tripwire; Perimeter |
| Network |
| Protocols |
RTSP; HTTP; HTTPS; TCP; UDP; DHCP; DNS; DDNS; NTP; IPv4; SSH; FTP |
| ONVIF |
Profile S / T |
| General |
| Power Supply |
DC12V±25%; PoE (IEEE 802.3af) |
| Operating Temperature |
-30°C ~ 60°C |
| Protection |
Surge 4000V; ESD 6000V; IP67 |
| Dimensions |
164 × 73 × 73 mm |
| Weight |
0.3 kg |
