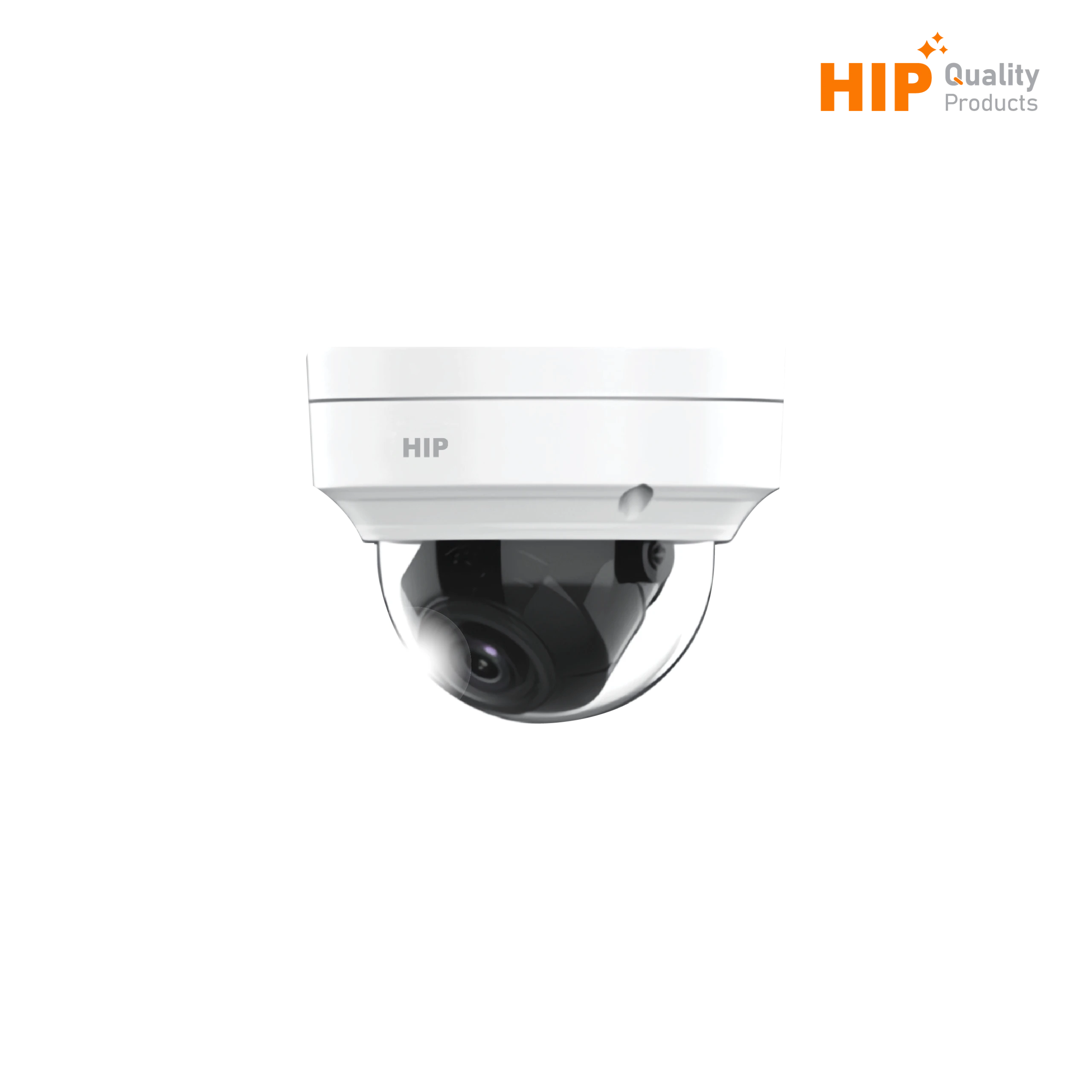

HIP 2MP VF Dome รุ่น CMU2192

รหัสสินค้า :

CMU2192

HIP 2MP VF Dome รุ่น CMU2192 สัญญาณภาพคมชัด ปลอดภัยทุกพื้นที่ ทุกย่างก้าวปลอดภัย 100% ความละเอียด 2 ล้านพิกเซล

  • High quality image with 2MP, 1/2.8"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • Smart IR, up to 40m (131ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis

HIP Logo PDF

หมวดหมู่สินค้า :

แชร์ข้อมูล :

(ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดโดยไม่ต้องแจ้งให้ทราบส่วงหน้า บริษัท เอช ไอ พี โกลบอล จำกัด)

Model CMU2192
Sensor 1/2.7", 2.0 megapixel, progressive scan,
CMOS
Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON)
OLux with IR on
Day/Night IR-cut filter with auto switch (ICR)a
Shutter Auto/Manual, 1 ~ 1/100000s
S/N >52dB
WDR 120dB

Lens

Lens Type 2.8 ~ 12mm, AF automatic focusing
and motorized zoom lens
Angle of View (H) 108.05°~32.59°
Angle of View (V) 56.81°~ 18.36°

llluminator

IR Range Up to 40m (131ft) IR range
IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264
Resolution Main Stream: 1080P (1920*1080), Max 30fps;
720P (1280*720), Max 30fps;
Sub Stream : 720P (1280*720),
Max 30fps; D1 (720*576),
Max 30fps; 640 *360,Max 30fps
Video Bit Rate 128 Kbps~6144 kbps
Support Motion Detection , Privacy Mask


White Balance Auto/ Outdoor/ Fine Tune/ Sodium Lamp/
Locked/ Auto2
Image Setting Image rotation, brightness, saturation,
contrast, sharpness, gain adjustable
by web browser
Digital noise reduction 2D/3D DNR
Smart IR Supported
HLC Normal/ Vertical/ Horizontal/ 180
BLC Supported
Flip Supported
Defog Digital Defog

Audio

Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ

Storage

Edge Storage Micro SD, up to 128GB
Network Storage ANR, NAS(NFS)

Smart

Edge Storage Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
Watermark, IP address fltering, access policy,
ARP protection, RTSP
Network Storage authentication, user authentication

Network

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP,
RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL, QoS, SNMP 802.1x.ONVIF
Web Browser Plug-in required live view: IE9+, Chrome 41 and
below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+,
Firefox 58.0+, Edge 16+

Interface

Network 10/100M Base-TX Ethernet
Built-in Mic Supported

General

Power DC 12V+25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Working Environment -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
